Standard Provisions:

Stainless steel – 320 or 316 glossy, satin finish,
Aluminum – anodized, powder coated (Choice of RAL colors)
Other designs on request,
Customized design by arrangement

▲TOP

▲TOP

1. Made of metal (i.e., cannot see through) or,
2. made of frame with glass panel (all glass is also possible) or,
3. with glass ceiling

▲TOP


Mullion

1. with slender mullion, or
2. without mullion

Sealing brushes made of horsehair

1. toughened safety glass door with edge protection or,
2. frame with glass panel for
   ．Resistant to objects being thrown through or
   ．Intruder resistant, or
   ．Bullet resistant

Door handle

1. Standard no handle or,
2. Color co-ordinated door handles or,
3. Customer specific door handle

▲TOP

1. Standard on Finish Floor level (therefore, floor covering is not needed)

Or,

2. Contact mat (pressure mat) made of rubber, or
3. Trapezoidal compartment mat, or
4. Coconut matting, or
5. Customer’s Choice

▲TOP

1. Outside Enclosure (example shown 180 degree model), or,
2. Inside enclosure (example shown 180 degree model)
3. with mechanical cylinder lock or with motor drive (remote controllable with electromechanical locking instead of cylinder lock),
4. made of metal or
5. Made of glass (various level of protection available) with frame.

▲TOP

1. Entry Direction

   ．Free, or
   ．Block, (Locked), or
   ．Electrically controlled (e.g. By access control system or by a
      Manual switch at the guard post)

2. Exit Direction

．Free, or
．Block (Locked), or
．Electrically controlled (e.g. By access control system or by a Manual switch
  at the guard post)

▲TOP

1. Manual, easy running, as an option, it is possible to put a rotatory damping for limiting speed; or
2. Servo-positioning drive turns the revolving door wing unit slowly until sealing brushes fit closely (it is still a manual revolving door than need manual force to turn it, the servo-positioning drive is only used to park the door wing to home position after being used), or,
3. Fully automatic by the servo-comfort drive (recommended for large or heavy revolving door), sensor for automatic run be concealed in the canopy so that it is invisible, or
4. Access control with card reader
5. For fully automatic model, a control panel will be provided so that the user can selected the following operations modes

• automatic
• continue (run at half speed when no people pass, and at full speed when user is being detected – normally being used at peak hours)
• disable mode (when a disable person has to pass the revolving door
• lock
• free (manual mode)

▲TOP

1. In the event of power Failure

   ．Free turn
   ．Blocked (locked) however, it is so design that no one will be locked in
   ．As an option, it is possible to manual release of door leaf cross locked
      when de-energized
   ．As an option it is possible to install an EM lock at the door leaf

   So that a clear passage is provided in case of fire alarm, electricity failure

2. Safety Edges

3. Low force (momentum movement) so that even user is accidentally be hit by door wing, he will not be hurt, and door wing will reverse a small distance so that the person being hit is possible to come out from the revolving door.

▲TOP

1. addition or installation of card readers, intercom systems etc
2. signal equipment
3. random check generator (usually not needed for commercial revolving door)
4. control console for remote control (release, block and reject)
5. emergency power supply
6. heating
7. lighting
8. manual release of door leaf cross locked when de-energized
9. re-inforced designs as a protection against vandalism, burglary (armed) attack and fire
10. external enclosure (with or without night security device)
11. internal enclosure
12. door leaf cross
13. enclosure glazing to top edge of finished floor
14. mode selection switch
15. balance with adjustable weight limited – (weight data transmission to access control system – so that card holder will not only be check with his card, but also his body weight when he enter the door.

▲TOP

1. On finished floor level (FFL)
2. On structural slab (SFL)
   - on pre-installed base frame
     connection to drainage system of building

▲TOP

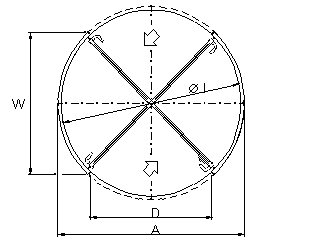

1. Outside diameter

   2060mm, 2190mm, 2440mm, 2740mm, 3240mm, or other size required by client (have to check with the wind and other considerations)

2. Overall Height

   At least 2100mm (underfloor motor drive system)
   At least 2300mm (drive in top drum)

3. Height of passage – 2100mm to customer specified height

4. Width of passage

Diameter 2060mm – 1280mm
Diameter 2190mm – 1380mm
Diameter 2440mm – 1560mm
Diameter 2740mm – 1770mm
Diameter 3240mm – 2110mm
