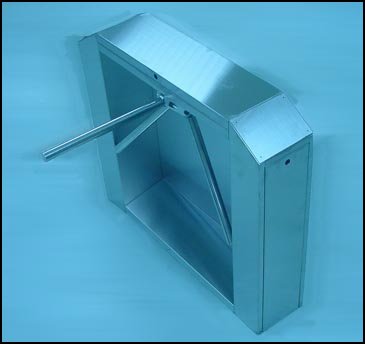

HALF-HEIGHT INTELLIGENT TURNSTILE
 Model Classic



           - Applications
- Finish
- Construction
- Operations
- Safety
- Security
- Electrical Equipment
- R & C Interface
- Installation
 Applications

This tripod barriers is designed for access control.  Normally installed within view of reception or security personnel for lightening their work and avoid staff conflict.  It is also ideal for automatic fair collection system.  The emergency drop arm and automatic reload function is specially designed for life safety in panic situation.

TOP

 Finish

satin stainless steel
polish stainless steel

additional finish upon request

TOP

 Construction

Stainless steel housing with space reserved for card reader, terminals and customer's other installations.

TOP

 Operations

locking opens even under pressure (do not jam when force applied to barrier rails);
servo positioning motor driven;
2 directions (programmable for direction, e.g. 1 direction card access, 1 direction free);
with memory;
optional random generator for checking of personnel
programmable time out function;
Optional passage contact feed back to access control system

TOP

 Safety

interface with fir alarm, arm drop in line with fire alarm to provide a clear passage, auto-reload to resume security immediately when alarm off;
drop arm design prevent trapping of child;
low force positioning motor drive prevent harmful hitting of cross bar at child head when cross bar moves to home position;
programmable buffer prevent harmful hitting of user against the turnstile when card reader is out of order

TOP

 Security

low level security because half-height turnstile can be jump over or go below;
low profile but effective access control in business setting such as office or premises;
normally use in connection with guard or reception personnel;
optional random generator help to prevent internal theft.  Entry or exit user will be required to be checked by security personnel when the random generator select the said user.  This make the checking be more effective.  At the same time, it prevents personal conflict between user and security guard on issue such as 'why select me' or ' am i look like criminal';
mainly for security or time attendance application in office or production environment.

TOP

 Electrical Equipment

Control integrated in the unit;
Supply : 230V AC 50Hz 95V A (different voltages available on request);
Power supply install at separate location possible.

TOP

 Reader an Computer Interface

Compatible with access control systems standards;
serial interfaces prepared for fieldbus cross linkage;
special interfaces, signal exchange with building, services automation and connection of customer's operating elements available on request.

TOP

 Installation


on finish floor level (FFL)
on structure slab (SFL)

TOP
